PARTS:

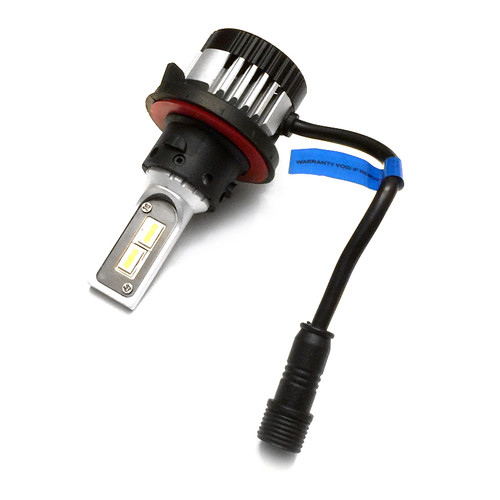

- 1pc H13 X7 LED bulb only. LED driver is NOT included
FEATURES:
- Adjustable LED beam: YES
- 360 degree light: YES
- 2 sided bulb design: YES
- External LED driver with built-in canbus anti-flicker decoders
- Output: H/L 7000lm per bulb
- LED CHIPS: 12pcs CUSTOM CSP LED chips
- Power: 45W per bulb
- Actual Power Draw: 3.9A@12V (46.8W) per bulb
- Voltage: DC 9-32V (12V or 24V systems)
- 6V DRL: NO (lowest operating voltage is 7.0V)
- Color: 6500K
- Lifespan: 30,000hrs
- Rating: IP65
- Working temperature: -40C to +85C
- Fan noise level: 38db (quiet library)
Dimensions:
Total bulb length: 8.5cm
Fan diameter: 3.8cm
Space needed for the bulb's fan at the back of the headlight: 2.1cm
LED driver size: 6.0cm (L) x 4.5cm (W) x 2.5cm (H)
Cable length: 36cm
Installation:
Low beam LEDs are the ones closest to the front of the LED bulb. When installing this bulb, ensure that LED chips are facing to the sides of the headlight, one side towards the fender and the other towards the grille. Also make sure that the low beam LEDs are on top, and high beam leds are on the bottom when in headlight. This is done by default, but check visually anyways. To install the OEM retaining ring, you will have to remove the black ring on the bulb, slide the OEM retaining ring onto the bulb, then slide the bulb's black ring back on, secure it with a screw, and then install the whole assembly in the headlight.
