These small amber lens LED lights can be used as daytime running lights, grille lights, or hood lights. They need 4cm of space to be mounted in and have one small screw on each side to secure them in place.
SPECIFICATIONS:
- LED Count in each light: 6pcs
- The set includes 4 LED lights with amber lens and a connector harness
- Fits a 4cm wide and 1.8cm high grille opening
- The side tabs on each light are 0.8cm wide and 0.8cm high
- Harness cable length: 190cm (6.2 feet) from the end of the light connector
- Power cable length from the light to the light connector: 20cm (7.9 inches)
- Color: Amber lens
- Power supply: 12V DC
- Power Wires: bare wire positive (red) and negative (black)
- Suggested connection: a fuse holder tap to any ACC fuse which is ON when the vehicle is in the ACC mode

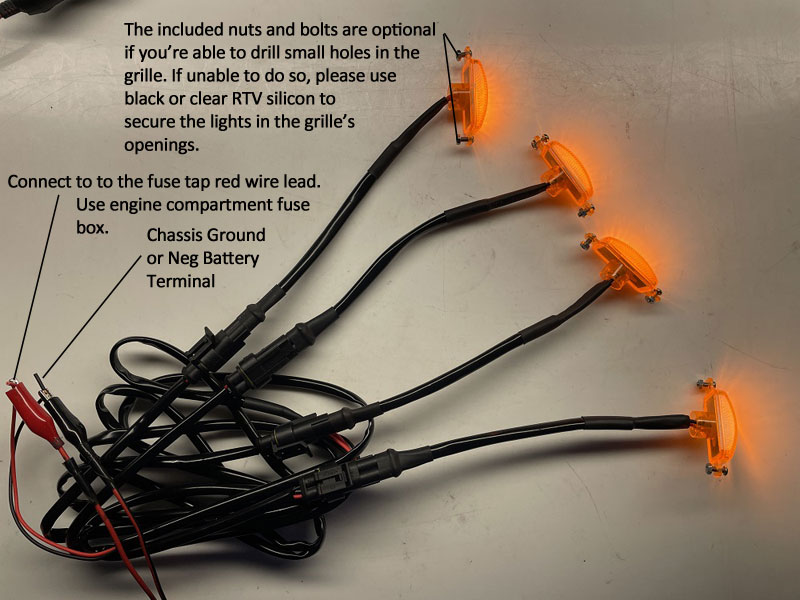

INSTALLATION:
- The harness has two bare wires + and - Plus goes to the fuse tap, while the ground can go to the negative battery terminal or a chassis ground
- Select the righ size fuse tap. There are 4 fuse tap sizes, so you'll need to select one that will correspond to the fuses in the engine compartment fuse box
- Check which fuse has power when the vehicle is ON. Start with the vehicle off. Check which fuses have power while the vehicle is OFF. These are NOT the ones you want to use. You'll need to find one that has power when the vehicle is ON. NOTE: Find a fuse that is NOT important - like the cigarette lighter or horn, NOT mission critical fuses like the ECU or the fuel pump
- Each fuse tap will have two fuses - the original one and the new one, each protecting its own circuit
